Portable Objects

Clicking the object module icon for portable devices (

) in the home screen or in the navigation bar opens the initial window of the object module for portable devices.

Portable objects and their associated tests are recorded and managed in this module.

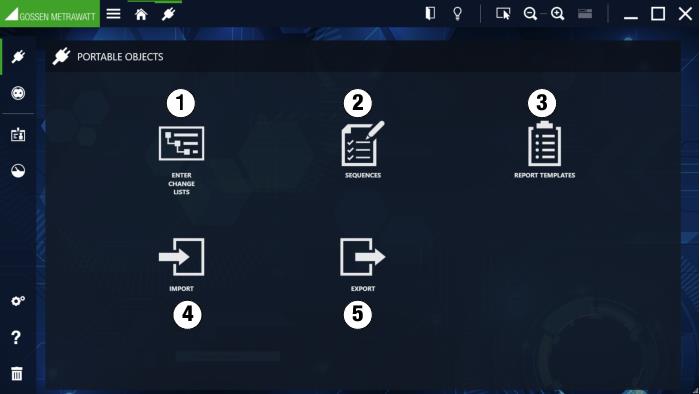

The following functions are available in the initial window:

1. Enter, change, lists:
Entry, organization and filtering of locations, customers and test objects, including tests and test sequences. Execution of tests in dialog with measuring and test instruments, creation of test reports and comparison of test results (see „The “Enter, Change, Lists” Function“).

2. Sequences: Create and manage test sequences and assignment to test objects (see „Function Sequences“).

3. Report templates: Import (Word file), create and manage report templates (see „Report Templates Function“).

4. Import: Import objects, tests and sequences from measuring instruments (see „Data Import Function“).

5. Export: Export objects and sequences to measuring and testing instruments (see „Data Export Function“).

The stationary objects module includes the following object types:

• Devices

• Medical devices
